MICRONOR光纤传感器

光纤传感器--MICRONOR

市场合作伙伴--欣佰特科技（北京）有限公司

Tel: 18001131966 Email: info@cnbytec.com

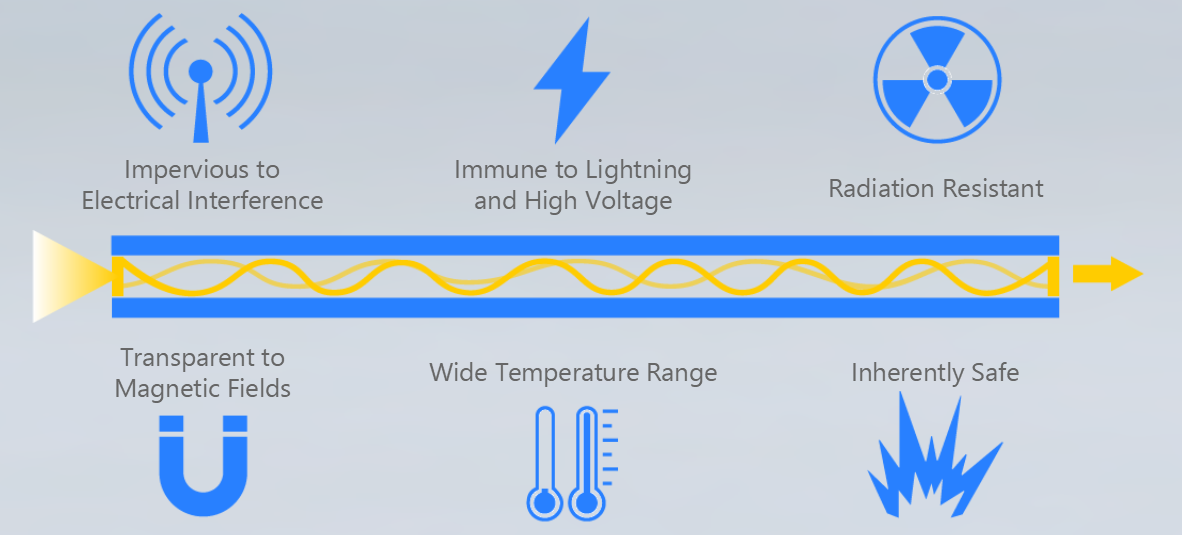

MICRONOR 公司成立于2013年，是创新的光纤传感器制造商，致力于利用光学器件/光纤材料固有的良好的抗电磁干扰（EMI/RFI）、抗雷电、抗高电压、抗核辐射、抗射频、本质安全、适用温度范围广等特性，开发制造适用于各种严酷环境的新型传感器。此类传感器是由光纤传感器与相应的信号调理设备配套组成一个完整的光纤传感系统。

光纤传感器应用领域：超高电压环境物理量测量；有电磁干扰环境物理量测量；宇航，核电项目研究，参量测量；有害有毒环境物理量测量；医疗设备；大型建筑结构；风电，机车等。

光纤传感器主要产品系列：

1、Fiber Optic Incremental Encoders光纤增量式编码器：

Fiber optic incremental encoders are typically used to sense the motion and speed of a motor shaft or linear actuator where conventional electronics-based encoders and resolvers are inadequate. Typically the user’s control system is looking for A/B quadrature signals for which electro-magnetic interference and noise causes system errors.

Micronor fiber optic incremental encoders are based on an all-optical passive Sensor design which optically connects to a remote Controller via a standard duplex OM1 62.5/125 multimode fiber optic link spanning distances up to 2500 meters. The Controllers offer much more interface capability then just A/B quadrature outputs. The additional built-in analog (4-20mA, ±10V) and digital interfaces (RS485, USB, Modbus RTU) and can also be user-programmed to output speed or position status.

2、Fiber Optic Absolute Rotary Encoders光纤绝对式编码器：

Micronor MR330 series is the only 100% Passive Fiber Optic Absolute Position Sensor System available on the market today. The innovative design is based on an all-optical passive sensor and remote interrogator module interconnected by an industry-standard multimode fiber optic link.

The MR330 Fiber Optic Position Sensor measures absolute angular position from 0° to 360° with 13/14 bit resolution and multiturn tracking up to 12 bits (4096 turns). The system can operate at full accuracy at speeds > 2500 rpm and distances > 300 meters. This sensor system uses a novel optical spectral imprint technique.

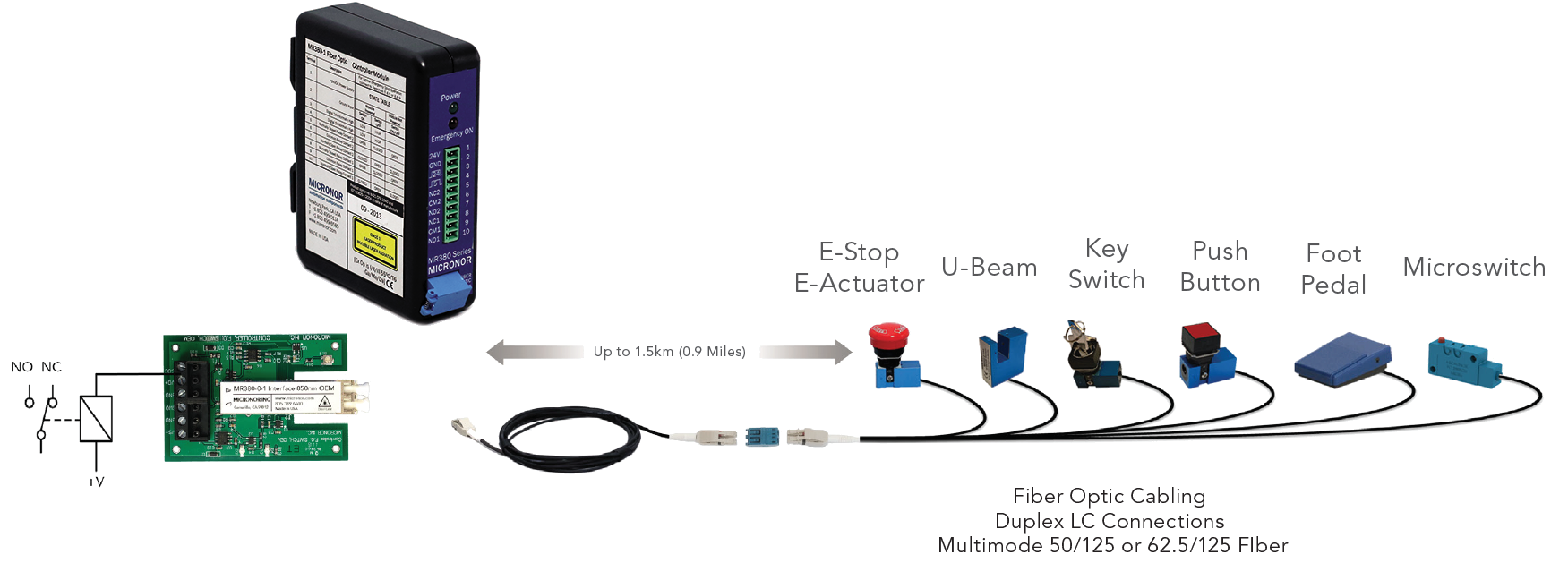

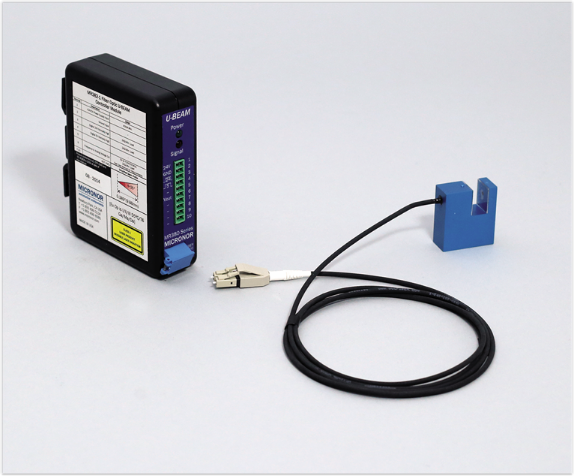

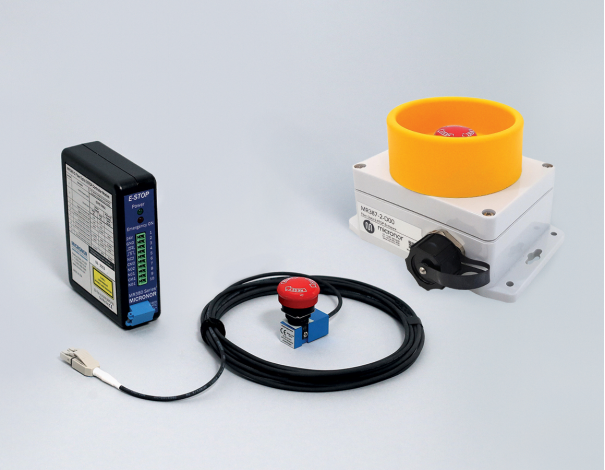

3、光纤开关信号传感器：（光纤微动开关、按钮开关、U型接近开关、急停开关、钥匙旋钮开关、脚踏开关等）

4、光纤温度传感器：（-200°C to +300°C）

主要产品系列： TS2, 一般科研、电力变压器及工业应用； TS3, 一般科研、射频、微波等应用；

TS4, 严酷的化工及核电应用等； TS5, 医疗及极小安装空间等；

TS Trafo, 油浸变压器等； TS Multipoint, 大批量及多点应用场景。

FIBER OPTIC TEMPERATURE SIGNAL CONDITIONERS 光纤温度传感器信号处理器

FOTEMPMK-19''-MODULAR, FIBER OPTIC THERMOMETER

for process monitoring

FOTEMP1-H, FIBER OPTIC THERMOMETER

Single-channel handheld for lab, multi-purpose applications

FOTEMP1-4, FIBER OPTIC THERMOMETER

1-4 channel signal conditioner for microwave, lab

FOTEMP1-OEM

OEM for industrial applications

FOTEMPTRAFO, FIBER OPTIC THERMOMETER

Eight channel thermometer for transformer monitoring

FOTEMP1-OEM-MNT, FIBER OPTIC THERMOMETER

Single-channel OEM Miniature for industrial applications

FIBER OPTIC TEMPERATURE SENSORS & PROBES 光纤温度传感器探头系列：
